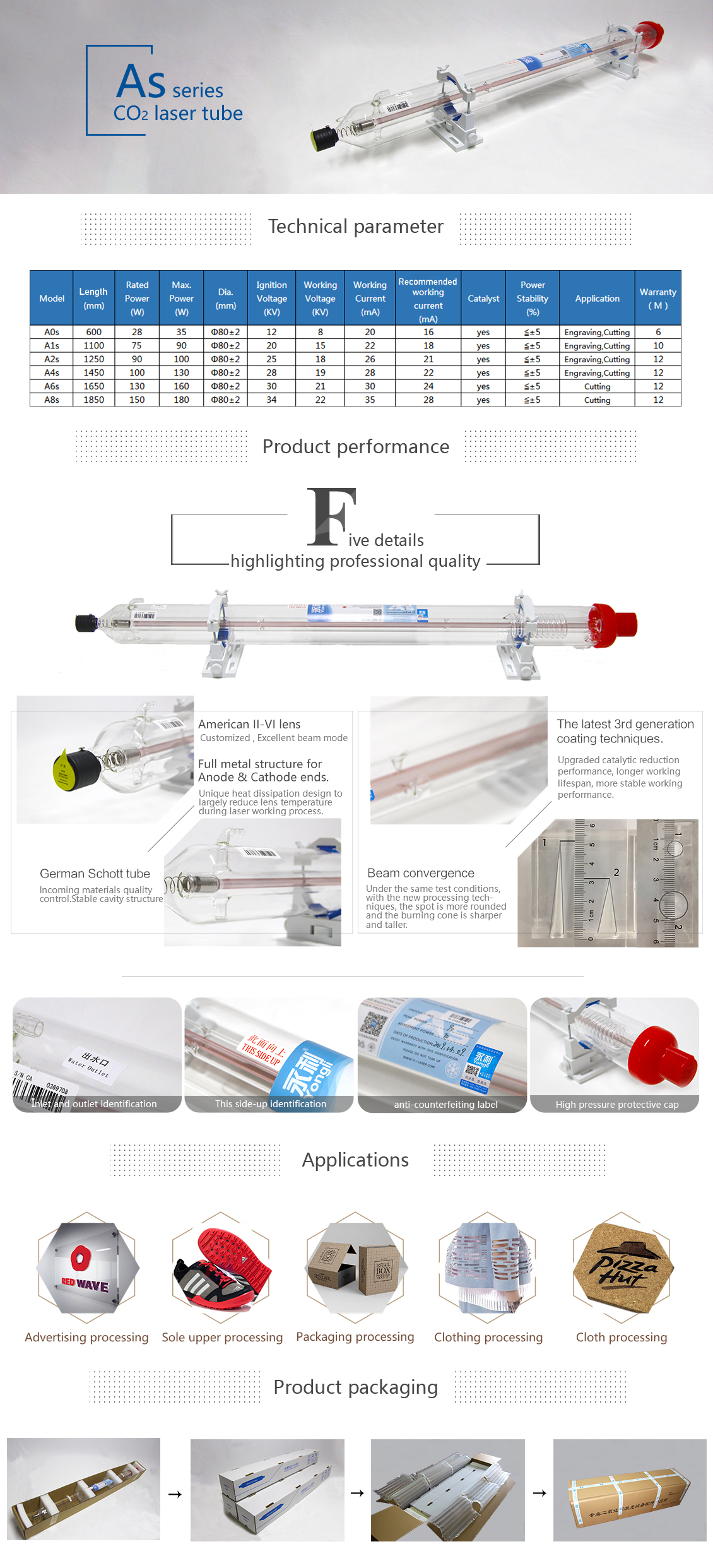

As series Co2 Laser Tube

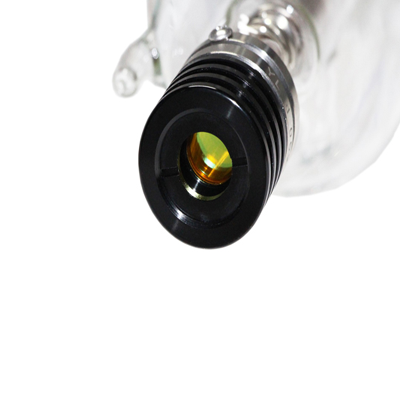

High transparency, good beam mode

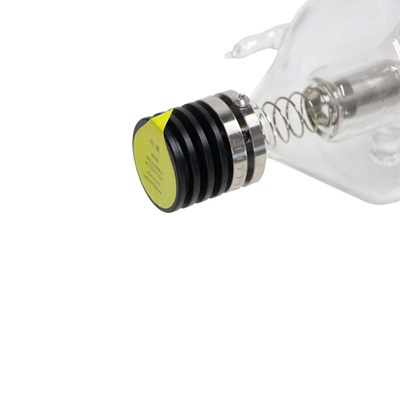

Whole metal head structure
Special heat dissipation process to greatly reduce lens operating temperature
New upgraded three-generation coating process
Schott tube, quality control, Stable cavity structure
Improve catalytic reduction performance , Longer lifespan , More stable performance
Beam convergence
As series Co2 laser tube modify the beam size and quality effectively that solves the beam distortion, increase the effective power. Inner lens upgraded. All of inner lens and mirrors is customized by the U.S.II-VI Infrared. Adopting new catalytic technology to enhance coating firmness and catalytic consumption, stable on longtime working, lifespan is longer. A6s, A8s are capable for thin metal and non-metal cutting, with better cutting performance.
1. Power Supply requirements
Input required AC 220 ~ 240AV / 50Hz
2.Water cooling requirements
Chiller requires the distilled water or the deionized water Low PH level, pure, no scale, no pollution, no viscous.
Water Temperature：20～30℃；
Lift：10M-15M;
Flow: 3L/min-12.8L/min。
3. Environmental requirements
Laser should work at room temperature for 15-30 ℃ and humidity for 30-60%.
The laser is equipped with a power supply that operates under a well ventail environment.
The work space needs to meet local safety standards for the operation of laser equipment.
4Installation
(1) Please install laser tube according to the marking on the laser tube, the best support position at the quarter of laser tube, as possible as keep the side up or side up indicator label, connect the wires of positive and negative terminal, inlet pipe and outlet pipe of the laser correctly.
(2) Turn on the chiller, adjust the laser tube direction, and ensure that the coolant is full of lasers and without bubble.
(3) Remove the window label and turn on the laser power supply to adjust the optical path.
Sometimes, to twist the laser tube angle so in order to adjust the laser beam is available
