Water Chiller for Co2 Laser Machine

This chiller is mainly used to cool the CO2 laser glass tubes of cutting machines, marking machines, engraving machines, and other equipment. CO2 RF tube laser users can select a suitable chiller according to the different powers of the laser.

ꄲNext： null

Laser chiller is an individual application of industrial refrigeration machine to laser industry. Laser chiller mainly performs water circulation cooling on laser generator of laser equipment and controls the operating temperature of laser generator so that laser generator can maintain normal operation for a long time. During the long-term operation of laser equipment, laser generator will continuously generate high temperature. Excessive temperature will affect the normal operation of laser generator, so laser chiller is needed for water circulation cooling and temperature control.
Features:
1.Precise temperature control, simple operation, microcomputer control system temperature

control accuracy ±0.3℃, ±0.5℃, ±1℃.
2.Low noise, low vibration, high EER value and stable operation.
3.Forged with high-quality component materials, small vibration, high torque, low noise, energy saving and power saving
4.Brand water pump, no water leakage, no jamming, corrosion resistance, acid and alkali resistance, multi-stage impeller.

Technology Parameter:

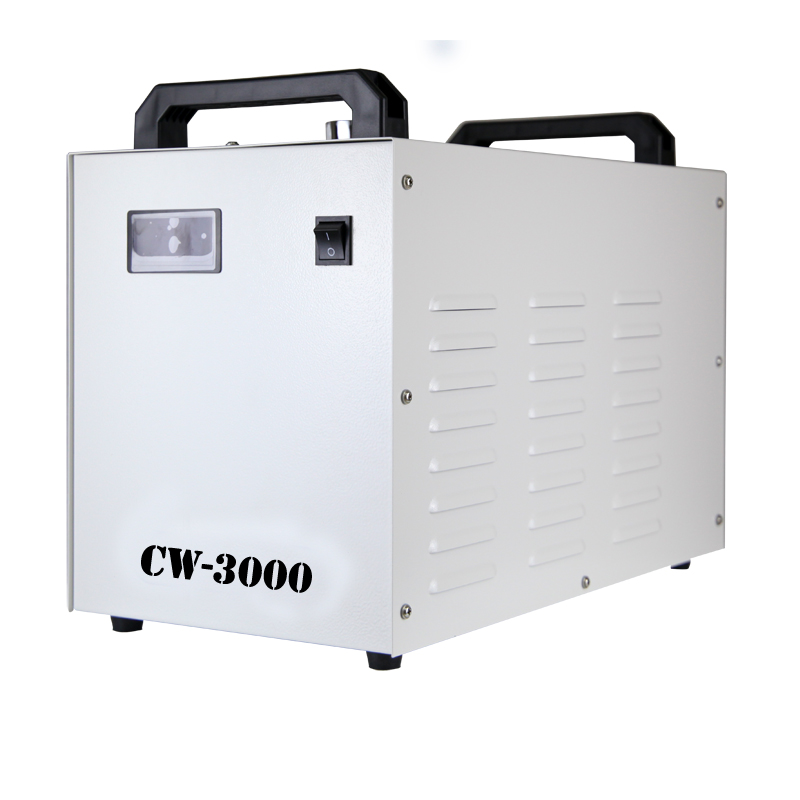

Model	CW3000AG	CW3000DG	CW5000DG	CW5000TG	CW5200DH	CW5200TH	CW6000AH	CW6000 DH
Voltage	AC 1P 110V	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 110V	AC 1P 220V	AC 1P 220V	AC 1P 110V
Frequency	50/60Hz		60Hz	50/60Hz	60Hz	50/60Hz	50Hz	60Hz
Current	0.9A	0.4~1A	0.3~4.7A	0.15~2.3A	0.45~7.5A	0.25~3.9A	0.3~6.3A	0.7~6.7A
Machine power	0.1KW		0.47KW	0.44/0.46kw	0.71kW	0.86kW	1.2kW	1.34kW
Compressor power	/	/	0.38kW	0.34/0.37kW	0.6kW	0.49/0.57kW	1.06kW	1.12kW
Nominal cooling capacity	/	/	0.85kw	0.86/1.02kw	1.64kw	1.42/1.7kw	3.14kw	3.11kw
Pump power	/	/	0.03kw	0.03kw	0.05kw	0.05kw	0.05kW	0.05kw
Max. lift	10m	10m	10m	10m	12m	12m	12m	12m
Max.flow	10L/min	10L/min	10L/min	10L/min	13L/min	13L/min	13L/min	13L/min
N.W.	9.5kgs	9.5kgs	24kgs	24kgs	26kgs	26.4kgs	44kgs	44Kgs
G.W.	12kgs	12kgs	26kgs	26kgs	30kgs	30kgs	70kgs	70Kgs
Precision	/	/	±0.3℃	±0.3℃	±0.3℃	±0.3℃	±0.5℃	±0.5℃
Tank capacity	9L	9L	6L	6L	6L	6L	18L	18L
Inlet and outlet	OD 10mm barbed connector						Rp1/2"
Dimension	51 X 27 X 33cm		58 X 29 X 47cm				65 X 47 X 86cm (L X W X H)
Package Dimension	58 X 38 X 47cm		68 X 39X 53cm				74 X 658 X 107cm
Suitable laser tube power	≤80W	≤80W	80W-120W		120W-130W		Above 130W
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
