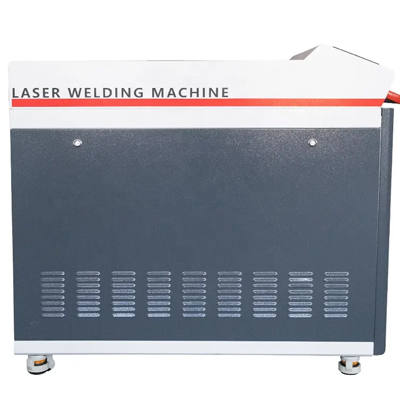

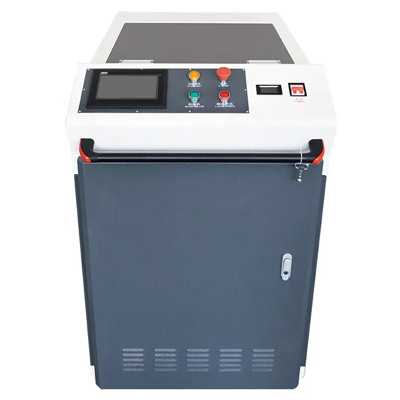

1500w 2000w 3000W fiber Laser Welder handheld laser welding machine
Application scope: metallurgy, mold, mechanical manufacturing, petrochemical, light industry, energy, transportation, automotive, hardware tools, military and other industries.
Applicable materials: metal materials such as steel, iron, aluminum, stainless steel, carbon steel, galvanized sheet, aluminum alloy, etc
|
Laser Power |
1500W |
2000W |
3000W |
|
Laser Wavelength |
1070±10nm |
1070±10nm |
1070±10nm |
|
Pulse Width |
Continuous/Modulation |
Continuous/Modulation |
Continuous/Modulation |
|
Cable Length |
10m(maximum 15m) |
10m(maximum 15m) |
10m(maximum 15m) |
|
Welding Depth |
0.2-4mm |
0.2-4mm |
0.2-4mm |
|
Speed Range |
0-120mm/s |
0-120mm/s |
0-120mm/s |
|
Repeat Welding Precision |
±0.01mm |
±0.01mm |
±0.01mm |
|
Focal Spot Diameter |
0.2-2mm |
0.2-2mm |
0.2-2mm |
|
Welding Gap Requirements |
≤0.5mm |
≤0.5mm |
≤0.5mm |
|
Power Consumption |
<8KW |
<10KW |
<10KW |
|
Modulation Frequency |
<10Khz |
<10Khz |
<10Khz |
|
Power Input |
AC220V+10%/3P+PE |
AC380V+10%/3P+PE |
AC380V+10%/3P+PE |
|
Energy Stability |
+/-1.5% |
+/-1.5% |
+/-1.5% |
|
Cooling Mode |
water-cooling |
water-cooling |
water-cooling |
|
Water Chiller |
1.5HP |
2HP |
2HP |
|
Optical Fiber Model |
QBH |
QBH |
QBH |
|
Fiber Diameter |
50um |
50um |
50um |
The Mini Type handheld Fiber laser welding machine
combines the fundamental qualities of an ultra-portable device with uncompromising performance.
1500/2000/3000 Mini handheld laser welding machine adopts the latest generation of fiber laser and is equipped with OSPRI handheld laser welding head, which fills the gap of handheld welding in the laser equipment industry. With the advantages of fast welding speed and no consumables, it can perfectly replace traditional argon Arc(TIG) welding, electric welding and other processes when welding thin stainless steel plates, iron plates, galvanized plates and other metal materials. Hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries.
Fast & Easy to Set Up
* Ergonomic, compact and proven to be the most comfortable and easy to use laser gun with built-in wobble welding functionality.
* 2-step trigger and part contact sensor enhance operator safety
* Purpose-built nozzle tips for various weld joint types and pre and post weld cleaning applications
* Quickly switch from standard laser welding to wire welding
* A single cable from the unit delivers laser power, gas and control connections to the gun
Handheld laser welder Application:
1500W 2000W 3000W HANDHELD FIBER LASER WELDING MACHINE WITH AUTO WIRE FEEDER CNC Fiber Laser welding can be used in welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, can also be used for a variety of welding between different materials, such as:
copper – brass, titanium –gold, Titanium – molybdenum, nickel – copper and so on.
Welding range: 0.5~8mm carbon steel,0.5~4mm stainless steel, aluminium alloy 0.5~6mm, brass 0.5~4mm.
Improved Welding Efficiency
Simple operation, one-time molding, can weld beautiful products without professional welders
Wobble handheld laser head is light and flexible, which can weld any part of the work piece,
making the welding work more efficient, safe, energy-saving and environmental protection.
Compared with the traditional welding method, it has unparalleled speed advantage, and the efficiency can reach nearly 10 times in some scenarios.
The welding seam is beautiful and has no deformation, which improves the one-time pass rate of the work piece, only a small amount of solder splashes, reduces the subsequent grinding and polishing process, improves the pass rate, improves efficiency, reduces waste, and reduces the cost of work pieces
