110CM Stepper Motor

The new design process of the motor has the advantages of greater torque, lower heat generation, and better running stability. Due to the adoption of a large-scale automated production line and strict quality management system, this series of stepper motors are more stable and reliable, and have superior batch consistency of performance parameters!

ꄴPrevious： null

ꄲNext： 57s Series Stepper Motor

110CM Series Stepper Motor high torque ,low fever, low noise and running smoothly

Model:

Model	Length（mm）	Holding Torque（N·M）	Rated Current（A）	Resistance/phase（Ω)	Inductance/phase（mH）	Rotational Inertia（kg·cm²)	Weight（kg）
110CM12	115	12	6	0.53	6.5	7.2	6
110CM20	150	20	6.5	0.8	15	10.9	9.20
110CM28	201	28	6.5	1.2	22	16.2	12.54
DM1182 DM2282

Technology Parameter

Size	110mm
Step Angle	1.8°
Step angle Accuracy	0.09°（No Loading、Full Step）
Temperature Rise	80K
Environment	Temp：-10~+50℃；Humidity：85% MAX
Insulation Class	F
Insulation Resistance	100MΩ MIN 500VDC
Withstand Voltage	1500VAC 1min
Radial Runout	0.025 mm MAX (Load 5N）
Axial Runout	0.075 mm MAX (Load 10N）
Radial Maximum Load	200N
Axial Maximum Load	60N

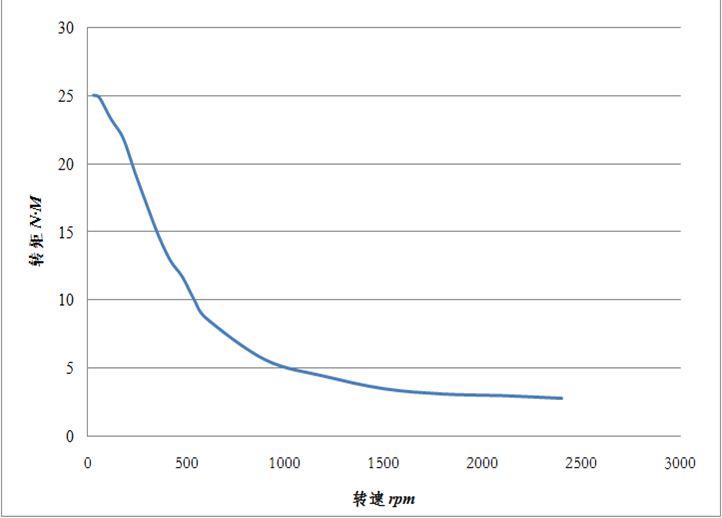

Moment Frequency Curve 110CM28

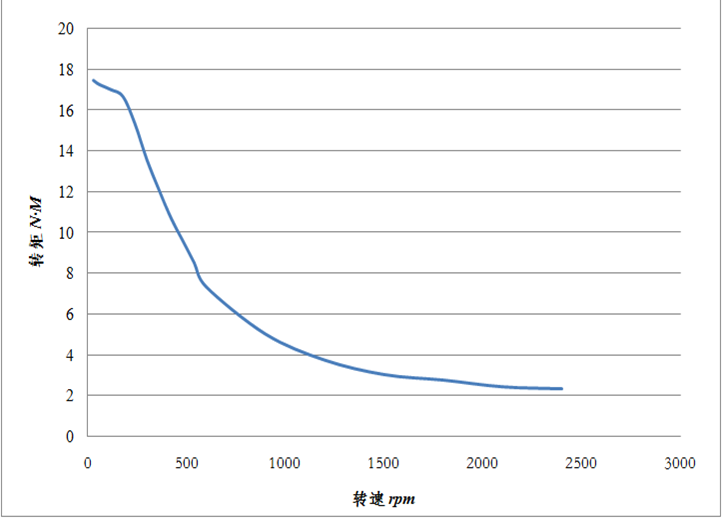

Moment Frequency Curve 110CM20

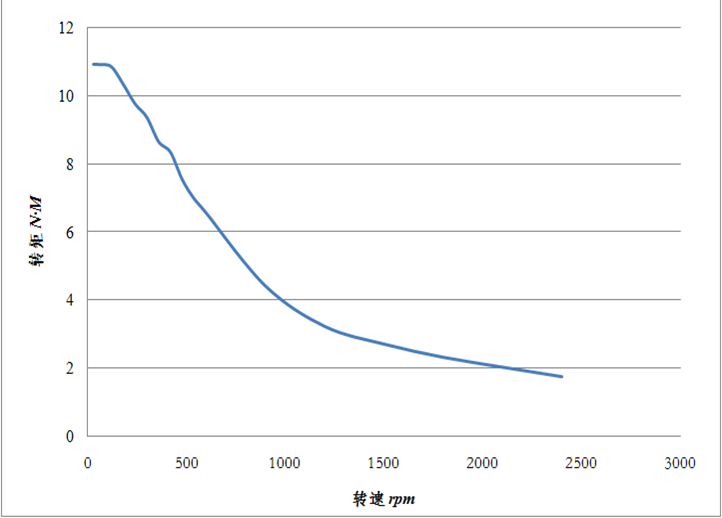

Moment Frequency Curve 110CM12
