60W 100W G series co2 lsaer tube

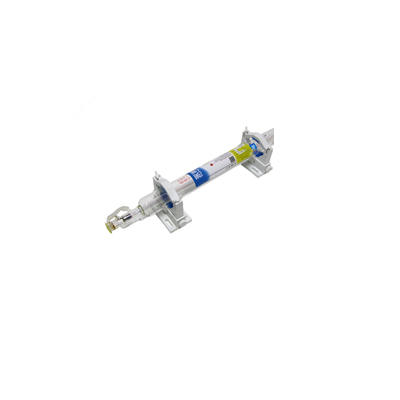

YongLi G series CO2 laser tube is the component that contains the CO2 (Carbon Dioxide) that is excited by the voltage coming from the 65W Power Supply. The diameter of the tube is 55mm (approximately 2 inches). The length of the tube is 1200mm-1600mm (depends on the laser power) This CO2 Laser Tube has an inlet and outlet for water cooling and wire connections for the anode and cathode sides of the tube.
G series CO2 laser tubes have high optical quality, strong cutting force, and high stability. Their advanced vacuum coating technology has further improved the power and service life of the laser tubes
G series CO2 Laser Tubes produce stable laser beams for more precise markings on a wide variety of materials.
|
Model |
Length |
Rated Power |
Max. Power |
Dia.(mm) |
Catalyst |
Power Instability (%) |
Warranty |
|
1200-G |
1200 |
65 |
75 |
Φ55±2 |
yes |
≤±5 |
6 |
|
1600-G |
1600 |
100 |
110 |
Φ60±2 |
yes |
≤±5 |
6 |
65w 100w G series CO2 Laser Tube 1200mm 1600mm D55mm D60mm Preconnected with Coating
[High quality] High quality laser beam, High cutting speed, Precise digital control in the process of production.
[Insurance] If it is damaged during transportation, we will send the new one. Claim will be made to the courier with customer's
provided photos.
[Durable]Unique laser coating technology enhances the laser tube power and improves its life time.
[Easy connection]The high voltage port and low voltage port have been connected in advance
II-VI Incorporated Customize Optics
YongLi laser tube quality has selected II-VI Incorporated Company lenses, a global leader in engineered materials and optoelectronic components based in The United States, to ensure the power output of the laser tube is stable, concurrently compared to other
brands of lenses, the laser tube power increased by more than 10%.It is excellent in laser spot mode, has a long service life and has strong laser energy.
【Wires Pre-Connected】
For easy installation, the high voltage end and low voltage port have been connected in advance.High-quality, reliable and long lifeUnique glass metal sealing technology Adjustable resonator, good beam qualityThe catalyst plated in the discharge tube
coordinates unique electrode treatment technique to make discharge more stably
Stability: The tube blanks are made of the glass, we apply glass-to-metal sealing technique to co2 laser tubes.
Long-lifetime: The catalyst plated in the discharge tube coordinates unique eletrode treatment technique to make discharge more stably and the working lifetime up to 7000 hours (According to the water temperature, continuous workload, the use of laser intensity and other aspects to determine) and ensures that the power of the laser tube has no attenuation during long time
working.
Spot mode: Adjustable resonator, good beam quality, stable powers are excellent in performance-to-price ratio for industrial and
medical application.
Appearance: Unique glass-metal sealing technology and standard industrial production has been applied
