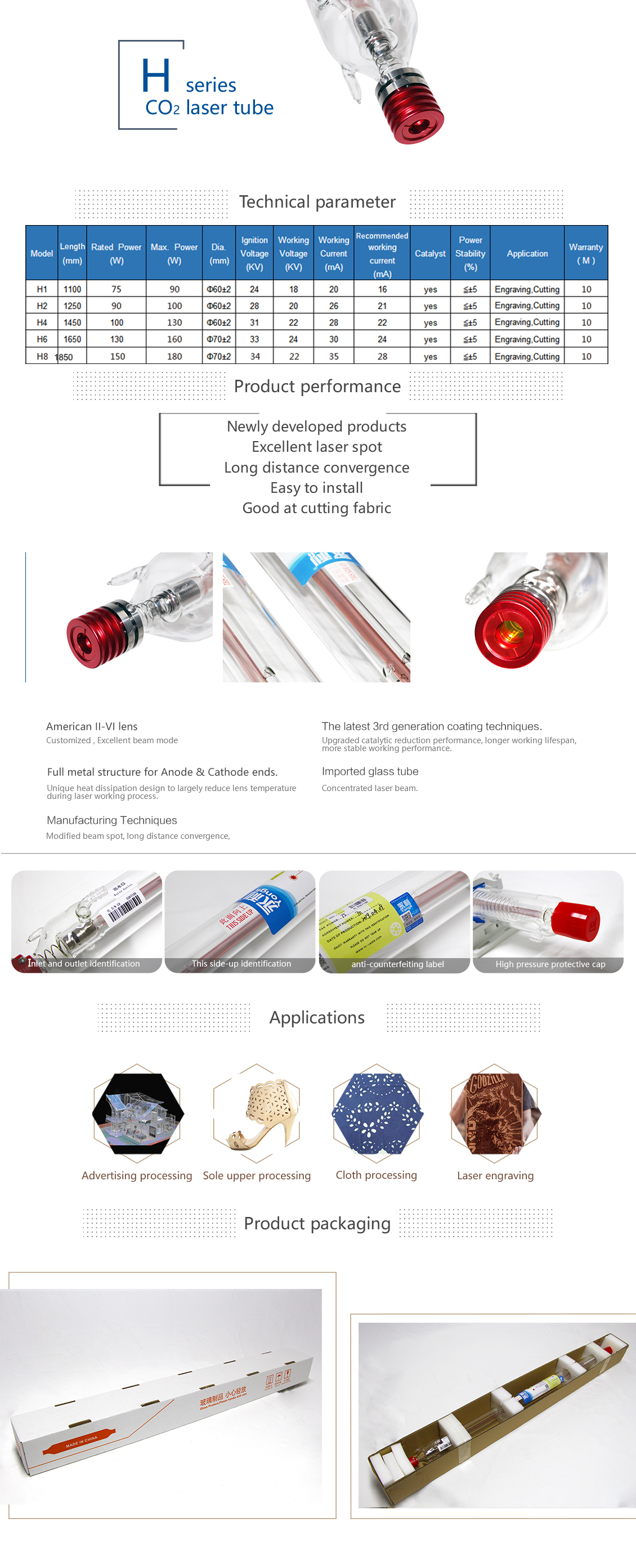

H Series Co2 Laser Tube

H series laser tube is a sound achievement of Yongli R&D department. The quality is reliable due to the adoption of the latest technology during the production process, moreover, it also improves the stability of the product structure, to some extent, improved the beam-spot output mode. Compared to other types of products, it has features of “excellent beam spot, longer beam-convergence, and easy installation

1. Power Supply requirements

Input required AC 220 ~ 240AV / 50Hz

2.Water cooling requirements

Chiller requires the distilled water or the deionized water Low PH level, pure, no scale, no pollution, no viscous.

Water Temperature：20～30℃；

Lift：10M-15M;

Flow: 3L/min-12.8L/min。

3.    Environmental requirements

Laser should work at room temperature for 15-30 ℃ and humidity for 30-60%.

The laser is equipped with a power supply that operates under a well ventail environment.

The work space needs to meet local safety standards for the operation of laser equipment.

4Installation

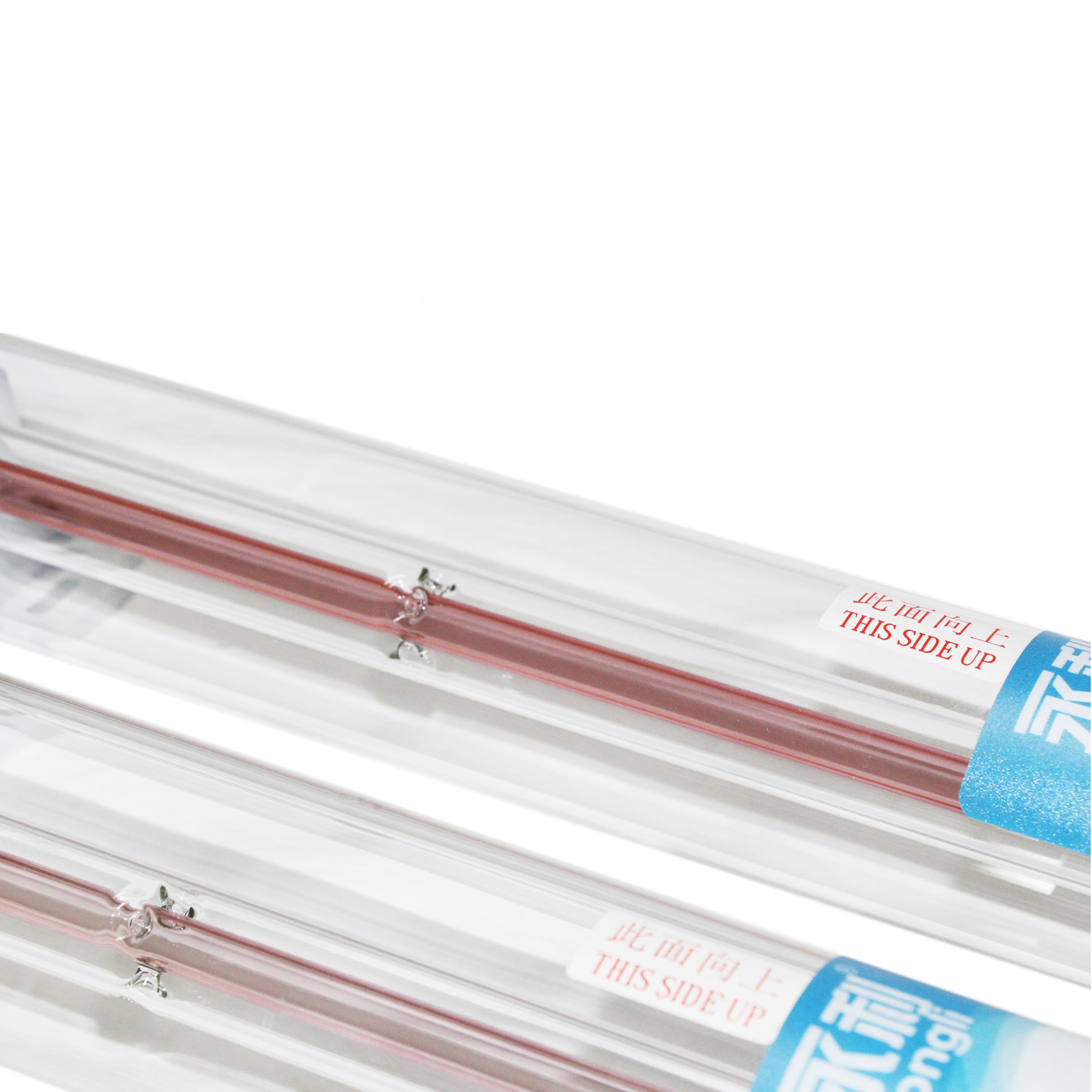

 (1) Please install laser tube according to the marking on the laser tube, the best support position at the quarter of laser tube, as possible as keep the side up or side up indicator label, connect the wires of positive and negative terminal, inlet pipe and outlet pipe of the laser correctly.

(2) Turn on the chiller, adjust the laser tube direction, and ensure that the coolant is full of lasers and without bubble.

(3) Remove the window label and turn on the laser power supply to adjust the optical path.

Sometimes, to twist the laser tube angle so in order to adjust the laser beam is available.
