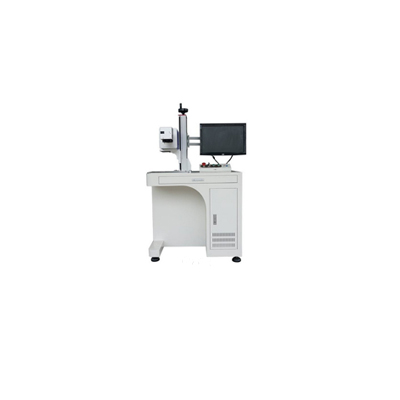

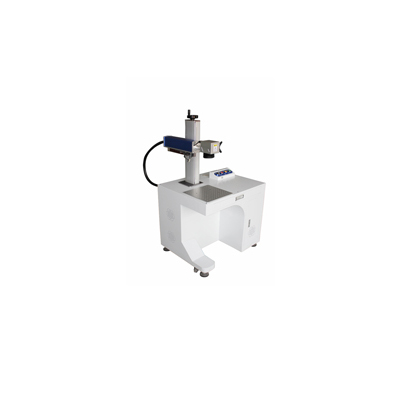

30W Fiber Laser Marking machine
1. marking on metal and non-metal.
2.Self-clean system
3.100000 working lifespan
4. High precision
5.Fast speed scanning and marking
6. Competitive price
This fiber laser marking machine mainly used for marking on metal and nonmetal material, it can marking on mobile phones buttons, plastic translucent keys, electronic，components, integrated circuits(IC), electrical appliances, communication products,sanity ware,tools,knifes,medical device industry,jewelry,glass and clocks,auto parts,luggage buckle, cooking utensils,stainless steel products and other industries, etc.
|
Laser power
|
20,30,50W ,70W,100W(Optional)
|
|
Laser Wavelength
|
1064nm
|
|
Light beam quality
|
<2
|
|
Marking range
|
110x110,150x150 ,200x200,300x300mm(Optional)
|
|
Marking depth
|
0.01~2mm（Depends on the material）
|
|
Marking speed
|
7000mm/s
|
|
Minimum character
|
0.15mm
|
|
Minimum line width
|
0.01mm
|
|
Repeating frequency
|
20KHz~30KHz
|
|
Marking content
|
Graphics, text, bar codes, two-dimensional code,
|
|
Graphic format supported
|
bmp,png,ai,dxf,dst,plt
|
|
working voltage
|
AC100-240V 50-60HZ
|
|
Working environment
|
Clean and dust free or dust less
|
|
Rated Power
|
≥600W
|
|
Laser module life
|
100000~200000 hours
|
Feature:
2.Higher precision, faster speed
3.Air cooling: Small size, low power consumption
4.Red light preview: show the marking position before marking
5.Up and Down Lifter laser head(desktop) and up and down worktable easy to marking engraving different workpiece
6.Rotary attachment optional: Engrave and mark inside and outside ring, Jewelry
7. The durability & Finer Marking quality: optimizes it for use in jewelry, mobile phones, and other items of value.
8.User friendly interface, easy operation set and deal different layers graphic in separate.
Support PLT,PCX, AL, DXF, BMP,JPG formats file compatible AutoCAD, CorelDraw, Photoshop, etc.
Description: Fiber laser marking machine capable to mark logo, serial number, bar code, text, picture, especially suitable for metallic materials and partial non-metal materials, stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing, jewelry, firearms and industry polymers.
Our laser marking machine adopts the best quality fiber laser source in the world. The estimated life for laser source will be around 100,000hours.
Applied Materials:
1. All metals: Gold, Silver, Titanium, Copper, Brass, Alloy, Aluminum, Steel, Manganese steel, Magnesium, zinc, Stainless steel, Carbon steel, Mild steel, all kinds of alloy steel, Electrolytic plate, Galvanized sheet, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, electroplating materials, industrial plastics, Hard plastic, rubber, ceramics, marble, granite, ABS, resins, cartons, leather,
clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material etc.
Applicable Industry: some fields required more precision and higher smoothness. The machine is widely used in the electronic components, integrated circuits, mobile communications, medical apparatus, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelry accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, and packing container, etc.

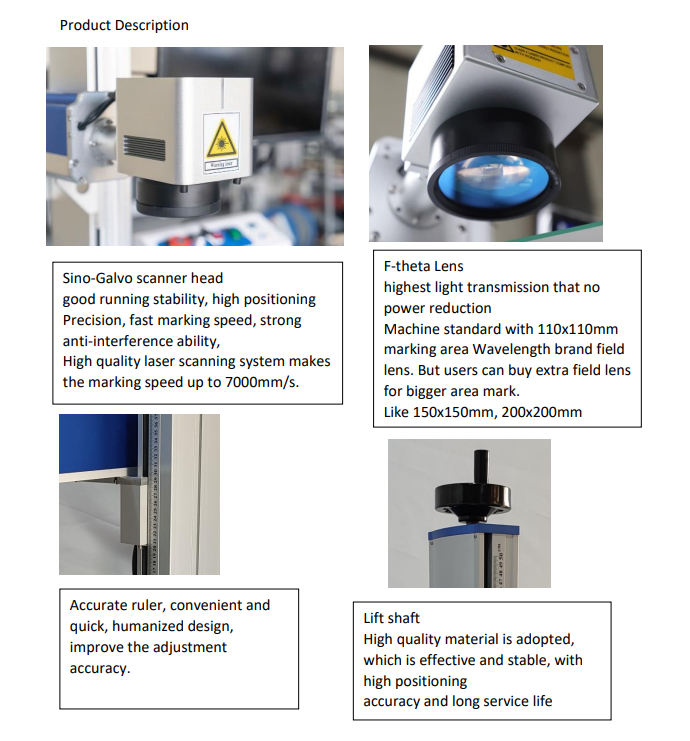

1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. High efficiency for photoelectric conversion, simple operation, Compact structure, support harsh working environment, no consumables.
5. This fiber laser marking machine is easy to take and easy to operate.
